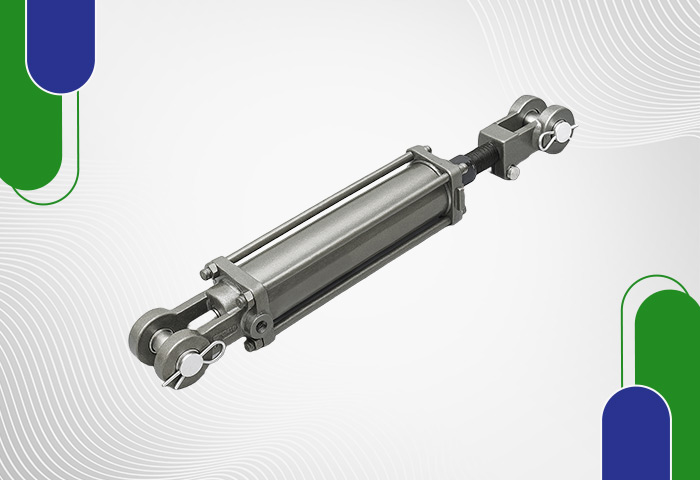

High-Performance Tie Rod Hydraulic Cylinders

Tie rod hydraulic cylinders are high-strength linear actuators designed to deliver powerful, controlled linear force using high-tensile steel tie rods to secure the cylinder caps to the barrel. Known for their modular design and standardized mounting options, these cylinders excel in heavy-duty machinery where serviceability, pressure containment, and reliable power density are critical. They are widely specified across industrial automation and mobile hydraulics due to their cost-effective maintenance and easy component replacement. Engineered to handle working pressures up to 250 bar (3625 PSI), tie rod cylinders ensure maximum uptime and operational precision in demanding field environments.

Key Features

• High-Tensile Tie Rod Architecture: External steel tie rods absorb pressure stresses and ensure uniform load distribution across end caps.
• Honed Steel Barrel Construction: Micro-finished interior bore surfaces minimize seal friction and extend operational lifespan.
• Universal Mounting Standards: Compatible with ISO, NFPA, and standard industrial mounts (MF1, MF3, MP1) for seamless integration.
• Advanced Polyurethane Sealing: Multi-lip wiper seals prevent internal leakage and resist high fluid pressure spikes.

Key Advantages

• Rapid On-Site Maintenance: Simple tie rod disassembly allows field technicians to replace seals without complete cylinder removal.
• Cost-Effective Scalability: Standardized replacement parts lower long-term maintenance costs compared to custom-welded alternatives.
• Compact Force Delivery: High mechanical power density allows efficient linear movement within tight equipment footprints.
• Dynamic Load Fatigue Resistance: Built to endure continuous duty cycles under heavy vibration and severe environmental exposure.

Industries Using Tie Rod Hydraulic Cylinders

Tie rod hydraulic cylinders are trusted across sectors for their strength, serviceability, and performance in demanding conditions:

1. Industrial Automation

Common in press machines and robotic arms, these cylinders offer precise linear motion for repetitive operations. Their durability supports 24/7 manufacturing without frequent breakdowns.

2. Agriculture Equipment

Ideal for ploughs, harvesters, and attachments, tie rod cylinders assist in soil tillage, load handling, and hydraulic lifting — reducing human effort and time in the field.

3. Earthmoving & Construction

Used in dozers, cranes, and excavators, they help lift and position heavy objects with accuracy. Their rigid construction suits rugged construction site operations.

4. Warehousing & Logistics

Whether operating a forklift or a conveyor pusher, these cylinders play a role in material stacking, lifting, and safe transfer of goods in confined spaces.

5. Mining & Heavy Machinery

Designed for high pressure and underground conditions, tie rod cylinders work reliably in rock drills, tunnel machines, and ore handling equipment.

6. Customized Engineering Applications

Whether for defense, marine, or aerospace, they can be tailored for specific tasks — including special mounting, stroke length, or pressure capacity.
